Inventário do set 45544-1 - EV3 Core Set

Instruções & Caixas Originais

EV3 Core Set

45544-1

Instrução

EV3 Core Set

45544-1

Caixa Original

Imagem	type	Nome
	Instrução	EV3 Core Set 45544-1
	Caixa Original	EV3 Core Set 45544-1

Sets

Power Functions Transformer 10VDC

8887-1

Quantidade 1

Imagem	Nome	Quantidade
	Power Functions Transformer 10VDC 8887-1	1

Adesivos

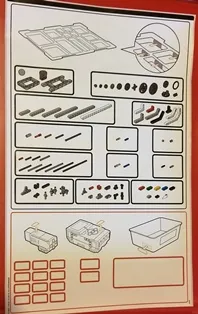

Sticker Sheet for Set 45544 - (42806)

45544stk01

Quantidade 1

Imagem	Nome	Quantidade
	Sticker Sheet for Set 45544 - (42806) 45544stk01	1

Livros

Cardboard Bin Liner for EV3 Sets

6044716

Quantidade 1

Set 45544 Cover and Inventory Card

45544bc

Quantidade 1

Imagem	Nome	Quantidade
	Cardboard Bin Liner for EV3 Sets 6044716	1
	Set 45544 Cover and Inventory Card 45544bc	1

Acessórios

Dacta Storage Bin Lid (Fits with 54187, 54189, and 900581)

54190

Quantidade 1

Dacta Storage Bin Medium, Deep (Fits with 54190)

54187

Quantidade 1

Dacta Storage Bin Upper Tray - 13 Compartment (fits 54187)

54572

Quantidade 1

Imagem	Nome	Quantidade
	Dacta Storage Bin Lid (Fits with 54187, 54189, and 900581) 54190	1
	Dacta Storage Bin Medium, Deep (Fits with 54190) 54187	1
	Dacta Storage Bin Upper Tray - 13 Compartment (fits 54187) 54572	1

Peças

Electric Sensor, Color - EV3

95650

(Not Applicable)

Quantidade 1

Electric Sensor, Gyro - EV3

99380

(Not Applicable)

Quantidade 1

Electric Sensor, Touch - EV3

95648

(Not Applicable)

Quantidade 2

Electric Sensor, Ultrasonic - EV3

95652

(Not Applicable)

Quantidade 1

Electric, Motor EV3, Large

95658

(Not Applicable)

Quantidade 2

Electric, Motor EV3, Medium

99455

(Not Applicable)

Quantidade 1

Mindstorms EV3 - Complete Brick

95646c01

(Not Applicable)

Quantidade 1

Technic Ball Steel 18mm D.

99948

(Not Applicable)

Quantidade 1

Electric, Cable USB for Mindstorms EV3, Male USB-A to Male USB Mini-B (Length 2m / 6ft)

10916

Black

Quantidade 1

Electric, Connector Cable, Mindstorms NXT 25cm

bb0601

Black

Quantidade 4

Electric, Connector Cable, Mindstorms NXT 35cm

55805

Black

Quantidade 2

Electric, Connector Cable, Mindstorms NXT 50cm

55806

Black

Quantidade 1

Technic Tread Sprocket Wheel Large

57519

Black

Quantidade 4

Technic Turntable 28 Tooth, Top

99010

Black

Quantidade 2

Technic, Axle 4L

3705

Black

Quantidade 4

Technic, Axle 6L

3706

Black

Quantidade 4

Technic, Axle 8L

3707

Black

Quantidade 2

Technic, Axle 10L

3737

Black

Quantidade 2

Technic, Axle 12L

3708

Black

Quantidade 2

Technic, Axle and Pin Connector Angled #1

32013

Black

Quantidade 4

Technic, Axle and Pin Connector Angled #2 - 180 degrees

32034

Black

Quantidade 4

Technic, Axle and Pin Connector Angled #6 - 90 degrees

32014

Black

Quantidade 2

Technic, Axle and Pin Connector Perpendicular 3L with Center Pin Hole

32184

Black

Quantidade 8

Technic, Axle and Pin Connector Perpendicular Double

32291

Black

Quantidade 4

Technic, Axle and Pin Connector Perpendicular Double Split

41678

Black

Quantidade 4

Technic, Axle Connector Double - Flexible Rubber

45590

Black

Quantidade 4

Technic, Gear 12 Tooth Double Bevel

32270

Black

Quantidade 2

Technic, Gear 20 Tooth Double Bevel

32269

Black

Quantidade 2

Technic, Gear 36 Tooth Double Bevel

32498

Black

Quantidade 2

Technic, Gear Knob Cog Wheel with Axle Hole (+ Orientation)

32072

Black

Quantidade 4

Technic, Liftarm Thick 1 x 2 - Axle Hole

60483

Black

Quantidade 4

Technic, Liftarm Thick 1 x 3

32523

Black

Quantidade 2

Technic, Liftarm Thin 1 x 4 - Axle Holes

32449

Black

Quantidade 2

Technic, Liftarm, Modified Bent Thick 1 x 9 (6 - 4)

6629

Black

Quantidade 4

Technic, Liftarm, Modified Crank / Pin 1 x 3 - Axle Holes

33299

Black

Quantidade 2

Technic, Liftarm, Modified T-Shape Thick 3 x 3

60484

Black

Quantidade 4

Technic, Link Tread Wide with 2 Pin Holes

57518

Black

Quantidade 54

Technic, Panel Fairing # 1 Small Smooth Short, Side A

87080

Black

Quantidade 1

Technic, Panel Fairing # 2 Small Smooth Short, Side B

87086

Black

Quantidade 1

Technic, Panel Fairing #17 Large Smooth, Side A

64392

Black

Quantidade 1

Technic, Panel Fairing #18 Large Smooth, Side B

64682

Black

Quantidade 1

Technic, Pin with Short Friction Ridges

2780

Black

Quantidade 60

Tire 56 x 28 ZR Street

41897

Black

Quantidade 2

Tire Technic Wedge Belt Wheel

2815

Black

Quantidade 4

Technic, Axle 1L with Pin with Friction Ridges

43093

Blue

Quantidade 20

Technic, Liftarm Thick 1 x 3

32523

Blue

Quantidade 4

Technic, Pin 3L with Friction Ridges

6558

Blue

Quantidade 30

Technic Wedge Belt Wheel (Pulley)

4185

Dark Bluish Gray

Quantidade 4

Technic, Axle 4L with Stop

87083

Dark Bluish Gray

Quantidade 2

Technic, Axle 8L with Stop

55013

Dark Bluish Gray

Quantidade 2

Technic, Axle and Pin Connector Perpendicular 3L with 2 Pin Holes

42003

Dark Bluish Gray

Quantidade 8

Technic, Gear 24 Tooth with 1 Axle Hole

3648

Dark Bluish Gray

Quantidade 4

Technic, Gear 8 Tooth with Dual Face

10928

Dark Bluish Gray

Quantidade 4

Technic, Steering Ball Joint Large Receptacle

92911

Dark Bluish Gray

Quantidade 1

Technic, Axle 3L with Stud

6587

Dark Tan

Quantidade 2

Technic, Liftarm Thick 1 x 3

32523

Green

Quantidade 4

Electric Rechargeable Battery DC - EV3

95656

Light Bluish Gray

Quantidade 1

Technic Bush

3713

Light Bluish Gray

Quantidade 10

Technic Turntable 28 Tooth, Base

99009

Light Bluish Gray

Quantidade 2

Technic, Axle 3L

4519

Light Bluish Gray

Quantidade 14

Technic, Axle 5L

32073

Light Bluish Gray

Quantidade 6

Technic, Axle 7L

44294

Light Bluish Gray

Quantidade 5

Technic, Axle 9L

60485

Light Bluish Gray

Quantidade 2

Technic, Axle and Pin Connector Perpendicular

6536

Light Bluish Gray

Quantidade 8

Technic, Axle and Pin Connector Perpendicular Triple

63869

Light Bluish Gray

Quantidade 6

Technic, Axle Connector Hub with 3 Axles

57585

Light Bluish Gray

Quantidade 2

Technic, Gear 16 Tooth - Axle Hole with Closed Sides

94925

Light Bluish Gray

Quantidade 4

Technic, Gear 40 Tooth

3649

Light Bluish Gray

Quantidade 2

Technic, Gear Worm Screw, Long

4716

Light Bluish Gray

Quantidade 2

Technic, Liftarm Thick 1 x 11

32525

Light Bluish Gray

Quantidade 4

Technic, Liftarm Thick 1 x 13

41239

Light Bluish Gray

Quantidade 6

Technic, Liftarm Thick 1 x 5

32316

Light Bluish Gray

Quantidade 4

Technic, Liftarm Thick 1 x 7

32524

Light Bluish Gray

Quantidade 4

Technic, Liftarm Thick 1 x 9

40490

Light Bluish Gray

Quantidade 6

Technic, Liftarm, Modified Bent Thick 1 x 9 (7 - 3)

32271

Light Bluish Gray

Quantidade 4

Technic, Liftarm, Modified Bent Thick L-Shape 3 x 5

32526

Light Bluish Gray

Quantidade 2

Technic, Liftarm, Modified Frame Thick 5 x 11 Open Center

64178

Light Bluish Gray

Quantidade 1

Technic, Liftarm, Modified Frame Thick 5 x 7 Open Center

64179

Light Bluish Gray

Quantidade 3

Technic, Liftarm, Modified Triangle Thin 3 x 5 with Short Supports

99773

Light Bluish Gray

Quantidade 4

Technic, Pin 3L with Friction Ridges and Center Pin Hole

87082

Light Bluish Gray

Quantidade 4

Technic, Pin Connector Perpendicular 3 x 3 Bent with 4 Pins

55615

Light Bluish Gray

Quantidade 4

Technic, Pin Connector Perpendicular 3L with 4 Pins

48989

Light Bluish Gray

Quantidade 6

Technic, Pin Connector Round 2L with Slot (Pin Joiner Round)

62462

Light Bluish Gray

Quantidade 4

Technic, Pin without Friction Ridges

3673

Light Bluish Gray

Quantidade 10

Wheel 43.2mm D. x 26mm Technic Racing Small, 6 Pin Holes

56908

Light Bluish Gray

Quantidade 2

Technic, Axle 2L Notched

32062

Red

Quantidade 10

Technic, Axle Connector 2L (Smooth with x Hole + Orientation)

6538c

Red

Quantidade 6

Technic, Liftarm Thick 1 x 3

32523

Red

Quantidade 4

Technic, Liftarm, Modified Bent Thick L-Shape 2 x 4

32140

Red

Quantidade 6

Technic, Pin 3L with Friction Ridges and Stop Bush

32054

Red

Quantidade 22

Technic, Pin Connector Perpendicular 2 x 2 Bent

44809

Red

Quantidade 2

Technic, Axle 1L with Pin without Friction Ridges with Round Hole

3749

Tan

Quantidade 8

Technic, Gear 12 Tooth Bevel

6589

Tan

Quantidade 2

Technic, Pin 3L without Friction Ridges

32556

Tan

Quantidade 6

Bionicle 1 x 3 Tooth with Axle Hole (Bohrok Eye)

x346

White

Quantidade 4

Technic, Liftarm Thick 1 x 15

32278

White

Quantidade 6

Technic, Liftarm, Modified Bent Thick 1 x 11.5 Double

32009

White

Quantidade 4

Technic, Liftarm, Modified Bent Thick 1 x 7 (4 - 4)

32348

White

Quantidade 6

Technic, Liftarm, Modified Bent Thick L-Shape 3 x 5

32526

White

Quantidade 4

Technic Bush 1/2 Smooth

4265c

Yellow

Quantidade 10

Technic, Liftarm Thick 1 x 3

32523

Yellow

Quantidade 4

Cor	Nome	Quantidade
(Not Applicable)	Electric Sensor, Color - EV3 95650	1
(Not Applicable)	Electric Sensor, Gyro - EV3 99380	1
(Not Applicable)	Electric Sensor, Touch - EV3 95648	2
(Not Applicable)	Electric Sensor, Ultrasonic - EV3 95652	1
(Not Applicable)	Electric, Motor EV3, Large 95658	2
(Not Applicable)	Electric, Motor EV3, Medium 99455	1
(Not Applicable)	Mindstorms EV3 - Complete Brick 95646c01	1
(Not Applicable)	Technic Ball Steel 18mm D. 99948	1
Black	Electric, Cable USB for Mindstorms EV3, Male USB-A to Male USB Mini-B (Length 2m / 6ft) 10916	1
Black	Electric, Connector Cable, Mindstorms NXT 25cm bb0601	4
Black	Electric, Connector Cable, Mindstorms NXT 35cm 55805	2
Black	Electric, Connector Cable, Mindstorms NXT 50cm 55806	1
Black	Technic Tread Sprocket Wheel Large 57519	4
Black	Technic Turntable 28 Tooth, Top 99010	2
Black	Technic, Axle 4L 3705	4
Black	Technic, Axle 6L 3706	4
Black	Technic, Axle 8L 3707	2
Black	Technic, Axle 10L 3737	2
Black	Technic, Axle 12L 3708	2
Black	Technic, Axle and Pin Connector Angled #1 32013	4
Black	Technic, Axle and Pin Connector Angled #2 - 180 degrees 32034	4
Black	Technic, Axle and Pin Connector Angled #6 - 90 degrees 32014	2
Black	Technic, Axle and Pin Connector Perpendicular 3L with Center Pin Hole 32184	8
Black	Technic, Axle and Pin Connector Perpendicular Double 32291	4
Black	Technic, Axle and Pin Connector Perpendicular Double Split 41678	4
Black	Technic, Axle Connector Double - Flexible Rubber 45590	4
Black	Technic, Gear 12 Tooth Double Bevel 32270	2
Black	Technic, Gear 20 Tooth Double Bevel 32269	2
Black	Technic, Gear 36 Tooth Double Bevel 32498	2
Black	Technic, Gear Knob Cog Wheel with Axle Hole (+ Orientation) 32072	4
Black	Technic, Liftarm Thick 1 x 2 - Axle Hole 60483	4
Black	Technic, Liftarm Thick 1 x 3 32523	2
Black	Technic, Liftarm Thin 1 x 4 - Axle Holes 32449	2
Black	Technic, Liftarm, Modified Bent Thick 1 x 9 (6 - 4) 6629	4
Black	Technic, Liftarm, Modified Crank / Pin 1 x 3 - Axle Holes 33299	2
Black	Technic, Liftarm, Modified T-Shape Thick 3 x 3 60484	4
Black	Technic, Link Tread Wide with 2 Pin Holes 57518	54
Black	Technic, Panel Fairing # 1 Small Smooth Short, Side A 87080	1
Black	Technic, Panel Fairing # 2 Small Smooth Short, Side B 87086	1
Black	Technic, Panel Fairing #17 Large Smooth, Side A 64392	1
Black	Technic, Panel Fairing #18 Large Smooth, Side B 64682	1
Black	Technic, Pin with Short Friction Ridges 2780	60
Black	Tire 56 x 28 ZR Street 41897	2
Black	Tire Technic Wedge Belt Wheel 2815	4
Blue	Technic, Axle 1L with Pin with Friction Ridges 43093	20
Blue	Technic, Liftarm Thick 1 x 3 32523	4
Blue	Technic, Pin 3L with Friction Ridges 6558	30
Dark Bluish Gray	Technic Wedge Belt Wheel (Pulley) 4185	4
Dark Bluish Gray	Technic, Axle 4L with Stop 87083	2
Dark Bluish Gray	Technic, Axle 8L with Stop 55013	2
Dark Bluish Gray	Technic, Axle and Pin Connector Perpendicular 3L with 2 Pin Holes 42003	8
Dark Bluish Gray	Technic, Gear 24 Tooth with 1 Axle Hole 3648	4
Dark Bluish Gray	Technic, Gear 8 Tooth with Dual Face 10928	4
Dark Bluish Gray	Technic, Steering Ball Joint Large Receptacle 92911	1
Dark Tan	Technic, Axle 3L with Stud 6587	2
Green	Technic, Liftarm Thick 1 x 3 32523	4
Light Bluish Gray	Electric Rechargeable Battery DC - EV3 95656	1
Light Bluish Gray	Technic Bush 3713	10
Light Bluish Gray	Technic Turntable 28 Tooth, Base 99009	2
Light Bluish Gray	Technic, Axle 3L 4519	14
Light Bluish Gray	Technic, Axle 5L 32073	6
Light Bluish Gray	Technic, Axle 7L 44294	5
Light Bluish Gray	Technic, Axle 9L 60485	2
Light Bluish Gray	Technic, Axle and Pin Connector Perpendicular 6536	8
Light Bluish Gray	Technic, Axle and Pin Connector Perpendicular Triple 63869	6
Light Bluish Gray	Technic, Axle Connector Hub with 3 Axles 57585	2
Light Bluish Gray	Technic, Gear 16 Tooth - Axle Hole with Closed Sides 94925	4
Light Bluish Gray	Technic, Gear 40 Tooth 3649	2
Light Bluish Gray	Technic, Gear Worm Screw, Long 4716	2
Light Bluish Gray	Technic, Liftarm Thick 1 x 11 32525	4
Light Bluish Gray	Technic, Liftarm Thick 1 x 13 41239	6
Light Bluish Gray	Technic, Liftarm Thick 1 x 5 32316	4
Light Bluish Gray	Technic, Liftarm Thick 1 x 7 32524	4
Light Bluish Gray	Technic, Liftarm Thick 1 x 9 40490	6
Light Bluish Gray	Technic, Liftarm, Modified Bent Thick 1 x 9 (7 - 3) 32271	4
Light Bluish Gray	Technic, Liftarm, Modified Bent Thick L-Shape 3 x 5 32526	2
Light Bluish Gray	Technic, Liftarm, Modified Frame Thick 5 x 11 Open Center 64178	1
Light Bluish Gray	Technic, Liftarm, Modified Frame Thick 5 x 7 Open Center 64179	3
Light Bluish Gray	Technic, Liftarm, Modified Triangle Thin 3 x 5 with Short Supports 99773	4
Light Bluish Gray	Technic, Pin 3L with Friction Ridges and Center Pin Hole 87082	4
Light Bluish Gray	Technic, Pin Connector Perpendicular 3 x 3 Bent with 4 Pins 55615	4
Light Bluish Gray	Technic, Pin Connector Perpendicular 3L with 4 Pins 48989	6
Light Bluish Gray	Technic, Pin Connector Round 2L with Slot (Pin Joiner Round) 62462	4
Light Bluish Gray	Technic, Pin without Friction Ridges 3673	10
Light Bluish Gray	Wheel 43.2mm D. x 26mm Technic Racing Small, 6 Pin Holes 56908	2
Red	Technic, Axle 2L Notched 32062	10
Red	Technic, Axle Connector 2L (Smooth with x Hole + Orientation) 6538c	6
Red	Technic, Liftarm Thick 1 x 3 32523	4
Red	Technic, Liftarm, Modified Bent Thick L-Shape 2 x 4 32140	6
Red	Technic, Pin 3L with Friction Ridges and Stop Bush 32054	22
Red	Technic, Pin Connector Perpendicular 2 x 2 Bent 44809	2
Tan	Technic, Axle 1L with Pin without Friction Ridges with Round Hole 3749	8
Tan	Technic, Gear 12 Tooth Bevel 6589	2
Tan	Technic, Pin 3L without Friction Ridges 32556	6
White	Bionicle 1 x 3 Tooth with Axle Hole (Bohrok Eye) x346	4
White	Technic, Liftarm Thick 1 x 15 32278	6
White	Technic, Liftarm, Modified Bent Thick 1 x 11.5 Double 32009	4
White	Technic, Liftarm, Modified Bent Thick 1 x 7 (4 - 4) 32348	6
White	Technic, Liftarm, Modified Bent Thick L-Shape 3 x 5 32526	4
Yellow	Technic Bush 1/2 Smooth 4265c	10
Yellow	Technic, Liftarm Thick 1 x 3 32523	4

Contrapartes

Technic Turntable 28 Tooth with Black Top (99009 / 99010)

99009c01

Light Bluish Gray

Quantidade 2

Imagem	Cor	Nome	Quantidade
	Light Bluish Gray	Technic Turntable 28 Tooth with Black Top (99009 / 99010) 99009c01	2

Peças Alternativas

Technic, Gear Worm Screw, Long, Axle Opening Type II

32905

Light Bluish Gray

Quantidade 2

Imagem	Cor	Nome	Quantidade
	Light Bluish Gray	Technic, Gear Worm Screw, Long, Axle Opening Type II 32905	2

Peças de Reposição

Technic, Pin with Short Friction Ridges

2780

Black

Quantidade 1

Technic Bush

3713

Light Bluish Gray

Quantidade 1

Technic, Gear 12 Tooth Bevel

6589

Tan

Quantidade 1

Technic Bush 1/2 Smooth

4265c

Yellow

Quantidade 1

Cor	Nome	Quantidade
Black	Technic, Pin with Short Friction Ridges 2780	1
Light Bluish Gray	Technic Bush 3713	1
Tan	Technic, Gear 12 Tooth Bevel 6589	1
Yellow	Technic Bush 1/2 Smooth 4265c	1
